Introduction

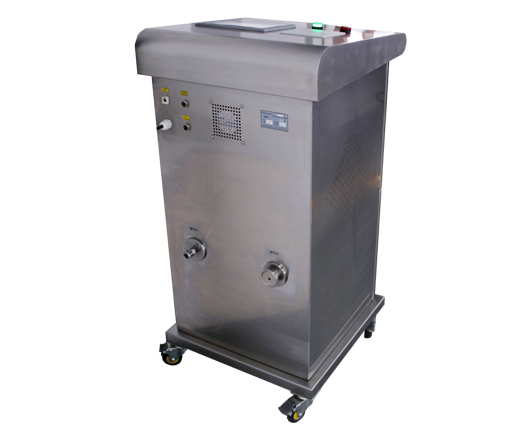

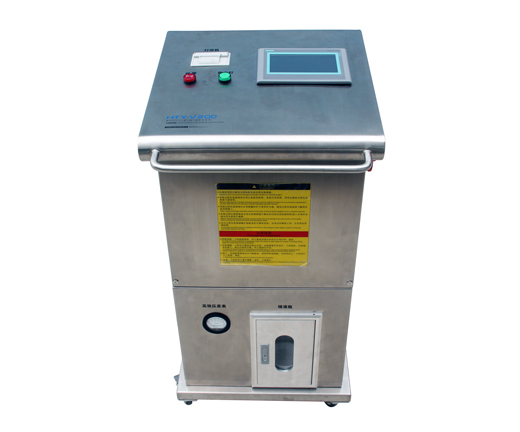

HTY-V200 Vapor Hydrogen Peroxide Generator (VHPS online

sterilization for lyophilizer) is an instrument specially designed for

sterilization under the vacuum state. It is applicable to conduct

online sterilization of lyophilizer. It takes advantages of that hydrogen

peroxide vapour vaporized from a concentration of 35% H2O2

(i.e.,hydrogen peroxide) solution by vaporizer. Then input the

solution to the vacuum equipment and it works.

Features

1. The shell, internal piping and components are made of 304

    stainless steel;

2. Using Siemens PLC touch screen, and advanced transducer;

3. It is used for online sterilization in vacuum equipments, especially

    suitable for online sterilization of lyophilizer (SIP);

4. Compared with the traditional sterilization method for the lyophilizer,

    this generator has following advantages:

     a, sterilize every corner

     b, no need to transform the lyophilizer

     c, low cost of operation and configuration

     d, short sterilization cycle

5. The ability to kill stearothermophilus spores reaches 106;

6. Repeatable sterilization process, ease of verification;

7. Non-toxic or no residues after sterilization;

8. Using mobile casters, easy to move;

9. Security: under the room temperature and atmospheric pressure,

    non-toxic, no residue;

10. Fast: Fast sterilization cycle, cost-effective;

11. Effective: Hydrogen peroxide has excellent material compatibility

    (device, electronic components and building materials), much easier

    to do verification;

12. Extensive use: with the function of broad-spectrum bactericidal

    effect, it is applicable to sterilize fungi, bacteria, viruses and spores ;

Parameter

1. Power supply: AC 220V/60Hz

2. Power: 2000W

3. Injection rate :1-3g / min

4. Carrier gas system:

       Compressed air :0.3-0 .6 Mpa;

       Air flow: <6 m3 / h

5. Vaporization temperature: ≤ 100 ℃

6. Noise: ≤ 70dB (A)

7. Sterilizing agent: 35% food grade hydrogen peroxide solution

8. Killing rate: the ability to kill stearothermophilus spores reaches 106

9. Working mode: Manually or automatically

10. Weight:50kg

11. Dimensions: (L*W*H) 500 mm * 590 mm * 1010 mm

Application

HTY-V200 Vapor Hydrogen Peroxide Generator (VHPS online

sterilization for lyophilizer) is especially suitable for online sterilization

of lyophilizers and vacuum equipments,etc.
